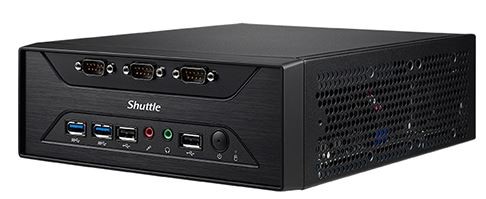

Shuttle XC60J 3.5L Fanless Slim Barebones PC

Description:

Shuttle XC60J 3.5L Fanless Slim Barebones PC

Intel Apollo Lake SoC platform, Intel Celeron J3355 CPU, Support HDMI+ VGA, Support (7) RS232 , (1) RS232/422/485 / Support M.2 2230 A,E key, Support M.2 2280 M key, Support Intel Gigabit Ethernet, Support Firmware TPM, Fanless design, Support 12V DC input

Specifications

Shuttle XC60J 3.5L Fanless Slim Barebones PC

The Shuttle XC60J is a compact, fanless barebones PC designed for professional applications requiring silent operation, energy efficiency, and robust connectivity. Housed in a durable 3.5-liter metal chassis, this mini PC is ideal for environments such as digital signage, kiosks, thin clients, and office PCs.

Key Features

• Processor: Equipped with the Intel® Celeron® J3355 processor (2 cores, 2 threads, base clock 2.0 GHz, turbo boost up to 2.5 GHz), providing efficient performance for everyday tasks.

• Chipset: Intel® Apollo Lake SoC platform, offering a stable and efficient platform for the supported processor.

• Memory: Supports up to 8GB of DDR3L-1866MHz SO-DIMM memory across two slots, allowing for smooth multitasking and memory-intensive applications.

• Storage:

  • One 3.5"/2.5" SATA III drive bay for additional storage.

  • One M.2 2280 M-Key slot for NVMe or SATA SSDs, offering high-speed storage options.

  • One M.2 2230 E-Key slot for optional WLAN cards, providing wireless connectivity.

• Graphics: Integrated Intel® HD Graphics 500, supporting dual displays via HDMI and VGA outputs, capable of handling 4K video playback.

• Networking:

  • One Intel® i211 Gigabit Ethernet port for reliable wired network connections.

• USB Ports:

  • Two USB 3.0 ports and four USB 2.0 ports for connecting various peripherals.

• Serial Ports:

  • Three RS232 ports, one RS232/RS422/RS485 port, catering to industrial and embedded applications.

• Audio: High-definition audio output for multimedia applications.

• Cooling: Features a fanless passive cooling system, ensuring silent operation and reliability in noise-sensitive environments.

• Mounting: Supports VESA mounting, allowing for versatile installation options behind monitors or on walls, saving valuable desk space.

• Operating System Support: Compatible with Windows 10/11 (64-bit) and Linux (64-bit), offering flexibility in operating system choice.


Applications

The Shuttle XC60J is suitable for a wide range of professional applications:

• Digital Signage: Delivering high-quality video playback for advertising and information displays.

• Kiosks: Providing interactive interfaces for self-service stations in public spaces.

• Thin Clients: Serving as a reliable endpoint for cloud-based computing solutions.

• Office PCs: Offering a compact and efficient solution for everyday computing tasks.

• Industrial PCs: Catering to industrial automation and control applications.


Why Choose the Shuttle XC60J?

The Shuttle XC60J offers a powerful combination of performance, compact design, and versatile connectivity options. Its support for the Intel® Celeron® J3355 processor, high-speed networking, and multiple display outputs make it an excellent choice for modern computing needs. Whether you're setting up a digital signage system, deploying a thin client solution, or building a compact office workstation, the XC60J provides the performance and flexibility required to meet your objectives.

Conclusion

In conclusion, the Shuttle XC60J 3.5L Fanless Slim Barebones PC combines reliable performance, a fanless design, and versatile connectivity in a small form factor. Perfect for a variety of professional environments, this mini PC provides an ideal solution for applications that require low power consumption, quiet operation, and efficient performance.
