Description:

DescriptionMaterialPlastic, OthersProduct AttributesOrdinaryPackage Size252*50*40(mm)

Product information:

Waterproof rating: IP67
Image sensor: 1/3 CCD
System: NTSC
Pixel: 512X582/512X492
Photosensitive area: 4.9X3.7
TV line: 420TVL
Output signal amplitude 1Vp-p, 75 Ohm
Backlight compensation (auto): Auto
Lens focal length F=1.9mm/F=2.0
Angle 170°
Maximum working current 270 (mA)
Working voltage 12 (V)
Working temperature -20～+75(RH95% Max.)
Storage temperature -40～+85(RH95% Max.)
Shell material: plastic
color: black

Packing list:

Camera x1

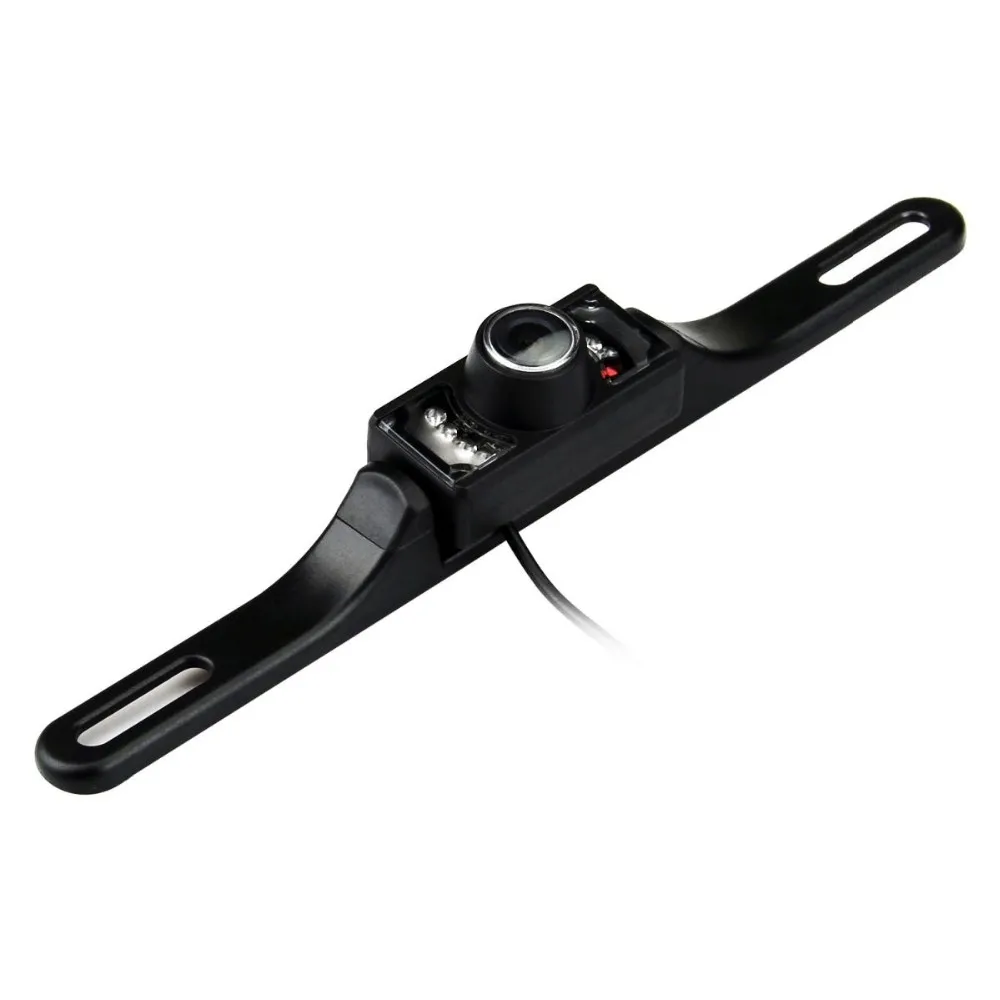

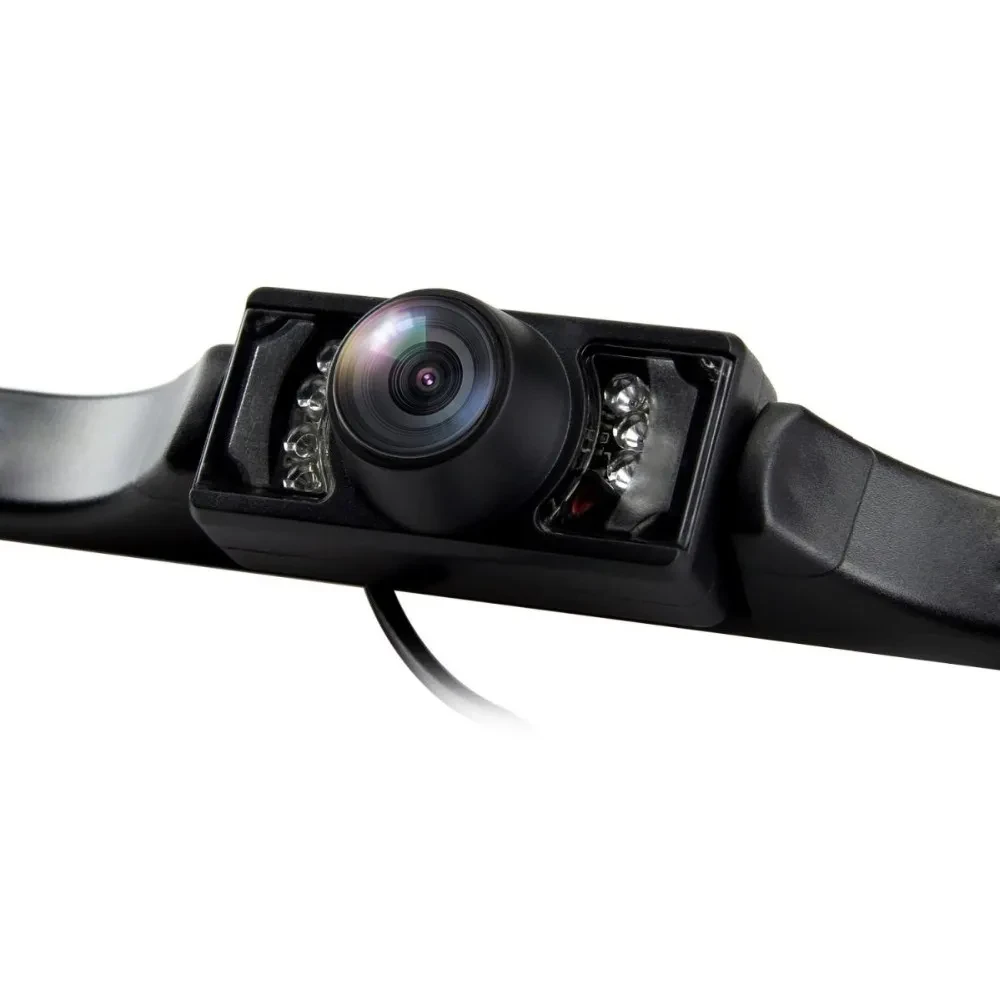

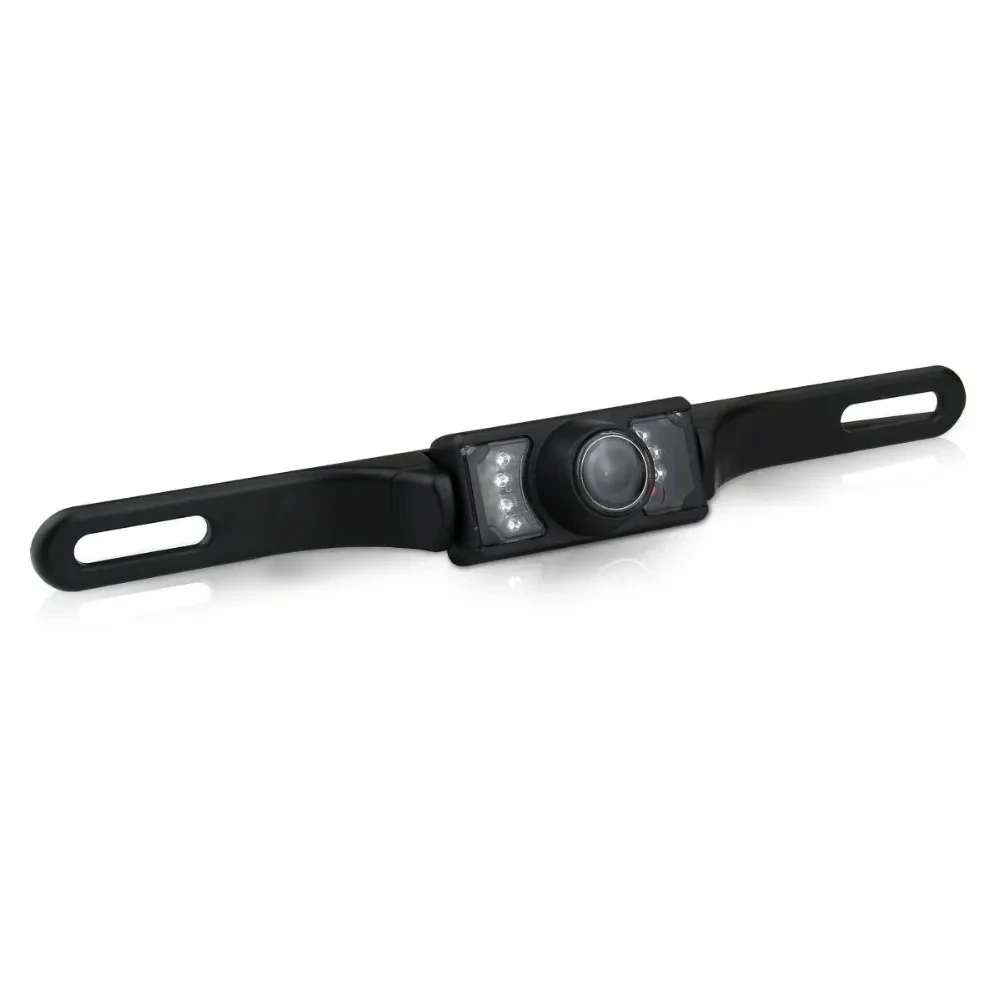

Long License Plate Frame Reversing Camera — Extra-Wide View, Clean Install

Upgrade reversing visibility with a full-width license plate frame camera that hides neatly behind your plate while delivering a broad, stable image. The elongated housing centers the lens for balanced perspective and easy alignment—perfect for sedans, SUVs, utes, and vans.

Key Features

• HD Wide-Angle Imaging
  120–170° diagonal field of view (model-dependent) captures the full lane, curbs, and low obstacles with clear, low-noise video.

• Night Vision Ready
  Low-light sensor with IR/LED assist (where equipped) keeps the picture usable in garages, rain, and dusk.

• Parking Guide Lines
  Selectable on-screen guidelines help judge distance; mirror/normal flip switch tailors the view for rear or front mounting.

• Plate-Frame Integration
  Thin, long frame replaces or overlays your plate holder for a clean OEM-style install—no bulky brackets. Central lens position aids accurate aim.

• Weatherproof & Durable
  IP67/IP68-class sealed body resists water, dust, and car-wash cycles; corrosion-resistant fasteners included.

• Universal Video Output
  Standard RCA composite (NTSC/PAL) works with most aftermarket head units, mirror monitors, and stand-alone screens; AHD variants available on some models.

• 12 V Trigger Wiring
  Power from the reverse-light circuit for automatic display switching; noise filter included on select kits.


Benefits

• Safer reversing: See pets, posts, and pedestrians before you move.

• Easier parking: Wide view + guide lines simplify tight spots and parallel parking.

• Clean look: Full-width frame hides wiring and blends with factory trim.

• All-weather confidence: Sealed, low-light-capable camera for year-round use.


Typical Specifications (may vary by model)

• Resolution: 720p / AHD 1080p-class

• FOV: 120–170° diagonal

• Min Illumination: ≤0.1–0.5 lux; IR/LED assist on select versions

• Video Out: 1.0 Vp-p, 75 Ω RCA (NTSC/PAL) or AHD

• Power: 12 V DC, ≤150 mA (reverse lamp trigger)

• Ingress: IP67–IP68

• Operating Temp: −20 °C to 70 °C

• Image Options: Mirror/normal, guide lines on/off


Install Overview

1. Mount the frame using existing plate holes; feed the cable through the trunk/tailgate grommet.

2. Connect video to the head unit/monitor; run RCA along existing loom.

3. Power from the reverse light + ground; add a fuse where appropriate.

4. Configure mirror/guide lines; aim slightly downward to see bumper + road.

5. Test in daylight and at night; adjust tilt if needed.


If unsure, consult a professional installer to protect vehicle wiring and seals.

What’s in the Box

• Long license plate frame camera (central-lens)

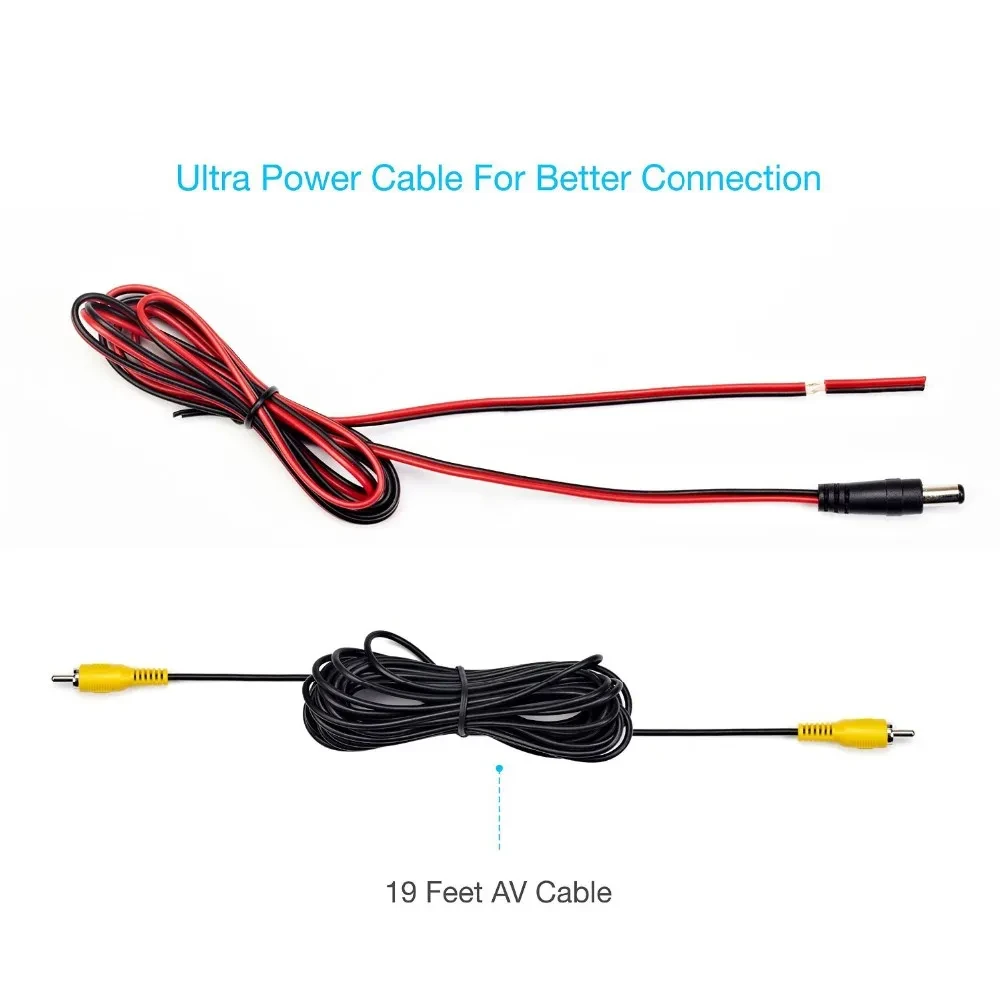

• Power/video harness with RCA

• Mounting hardware & gaskets

• User/installation guide


Why Choose This Frame Camera

You get wide, clear visibility and an OEM-clean installation in one package—making every reverse smoother, safer, and better looking.
