Description:

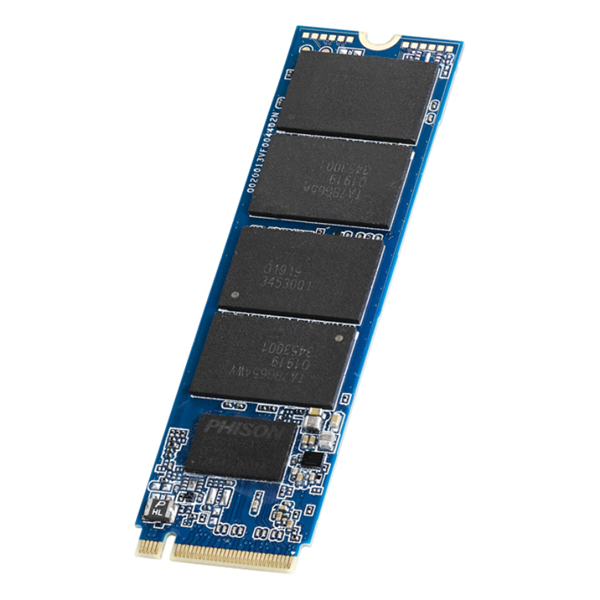

Advantech 720 M.2 NVMe Industrial TLC ECC 2TB SSD

M.2 NVMe, 2048GB Capacity. 2450MB/s Read, 1900MB/s Write, TBC TBW, BiCS5 TLC Flash. Supports Error Correction Code, Wear Leveling, Bad Block Management, Power Loss Protection, Over-Provision, and Thermal Throttling. AES-256 Support & TCG-OPAL Compliant

Specifications

Supports 120 bit ECC correct per 2K Byte data Supports Fragment Writing and Flush Manager Optional support for AES and voltage stabilizer Shock resistance, anti-vibration and low power consumption GUI management tool & software API package

Advantech 720 M.2 NVMe Industrial TLC ECC 2TB SSD

Introduction

The Advantech 720 M.2 NVMe Industrial TLC ECC 2TB SSD is a high-performance storage solution designed for industrial applications requiring reliability, speed, and endurance. Built with advanced features and robust specifications, this SSD is ideal for embedded systems, industrial automation, and mission-critical environments.

Key Features

1. High Capacity and Performance

• Capacity: 2TB

• Sequential Read Speed: Up to 2,450 MB/s

• Sequential Write Speed: Up to 1,900 MB/s

• Interface: PCIe Gen 3 x4

• Form Factor: M.2 2280 (M Key)

• Flash Type: 3D TLC BiCS5

• Compliance: NVMe 1.3


2. Advanced Error Correction and Data Integrity

• Error Correction: LDPC (Low-Density Parity-Check) with RAID ECC

• Data Protection: Supports TRIM, Wear Leveling, Bad Block Management

• Security: AES-256 Encryption, TCG-OPAL Compliance


3. Robust Endurance and Reliability

• Endurance: 2,400 TBW (Terabytes Written)

• Operating Temperature: 0°C to 70°C

• Storage Temperature: -40°C to 85°C

• Shock Resistance: 1,500G peak / 0.5 ms

• Vibration Resistance: 20G peak / 80 ~ 2,000 Hz


4. Power Loss Protection and Thermal Management

• Power Loss Protection: Ensures data integrity during unexpected power outages

• Thermal Throttling: Prevents overheating to maintain optimal performance


Benefits

• Enhanced Performance: Achieve high-speed data transfer rates, improving system responsiveness and efficiency.

• Data Integrity: Advanced error correction and data protection features ensure reliable storage.

• Durability: Built to withstand harsh industrial conditions, ensuring long-term reliability.

• Security: AES-256 encryption and TCG-OPAL compliance provide robust data security.

• Energy Efficiency: Low power consumption contributes to energy savings in industrial applications.


Why Choose the Advantech 720 M.2 NVMe Industrial TLC ECC 2TB SSD?

Opting for the Advantech 720 SSD means investing in a storage solution that combines speed, reliability, and durability. Whether you're upgrading existing systems or designing new industrial applications, this SSD offers the performance and resilience needed to meet the demands of modern industrial environments.
